Mobile Drum Mix Plants

MOBILE DRUM MIX PLANTS

ModelMDM 25MDM 45MDM 50MDM 60
Capacity20 - 30 TPH40 - 60 TPH60 - 90 TPH90 - 120 TPH
Mobile Drum Mix Plant 1

KAUSHIK automatic asphalt drum mix plants, compliant to the latest M.O.R.T.H. (previously known as M.O.S.T.) specifications, are designed and engineered to give trouble-free performance with superior fuel efficiency. Our pursuance to offer our customers the best and constant up-gradation of products today showcases exceptional and unmatched product refinement in our asphalt plants.

Our MDM (Mobile) series offers customers the industry’s finest & proven technical solution, latest generation process controls and automation together with total installation and site support, aimed to deliver precisely mixed quality asphalt – productively and profitably. KAUSHIK design team facilitates custom built asphalt plants to meet specific site demands and requirements. Available in capacities ranging from 20 to 120 TPH output in different models.

MDM-25 STANDARD CONFIGURATION:

MDM-45 (with pollution control unit) Standard Configuration:

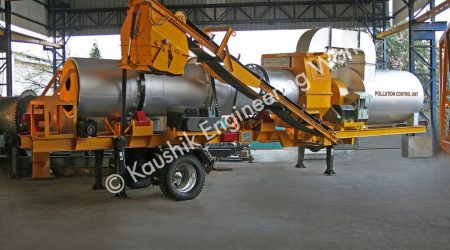

Mobile Drum Mix Plant

The Drying and Mixing unit of the asphalt plant demands complex flight design and heat transfer technology. With our passion to build the best machines, continuous R & D and incorporation of the latest design up-gradations, KEW thermodrum is way ahead of competition. The KEW thermodrom unit follows a triple heat transfer system that ensures a total transfer of heat to the aggregates, translating into higher productivity and lower fuel consumption. The heat is transferred to the aggregates using the conductive, connective and radiation techniques. The field proven unique flight design ensures total heat transfer, a thorough mixing & coating, lower emissions and prevention of bitumen oxidation.

Mobile Drum Mix Plant

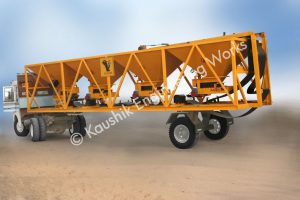

The bins are all-welded and modular in construction, permitting easy addition of bins to meet growing needs. Steep bin walls and valley angels allow free flow of aggregates from the feeders minimizing hold up to materials in the corners and bridging with sticky aggregates. The bins supplied with adjustable calibrated gate openings and variable speed feeder drives, together offer total proportional control, greater flexibility and accuracy of operations.

Bitumen Heating & Storage
Bitumen-Heating-And-Storage

With Kaushik Engineering Works, customers can opt for a direct heating type or hot oil heated bitumen storage tanks. Storage capacities range from 10 tons to 50 tons. The indirect heating tanks are supplied with a Japanese design thermic oil heater. The Direct heating tanks are supplied with automatic imported pressure jet burner. As a standard, all KEW tanks are supplied with auto thermostatic controls, hot oil circulating systems and jacketed bitumen pump. The tanks are fully insulated to minimize the heat loss and are provided.

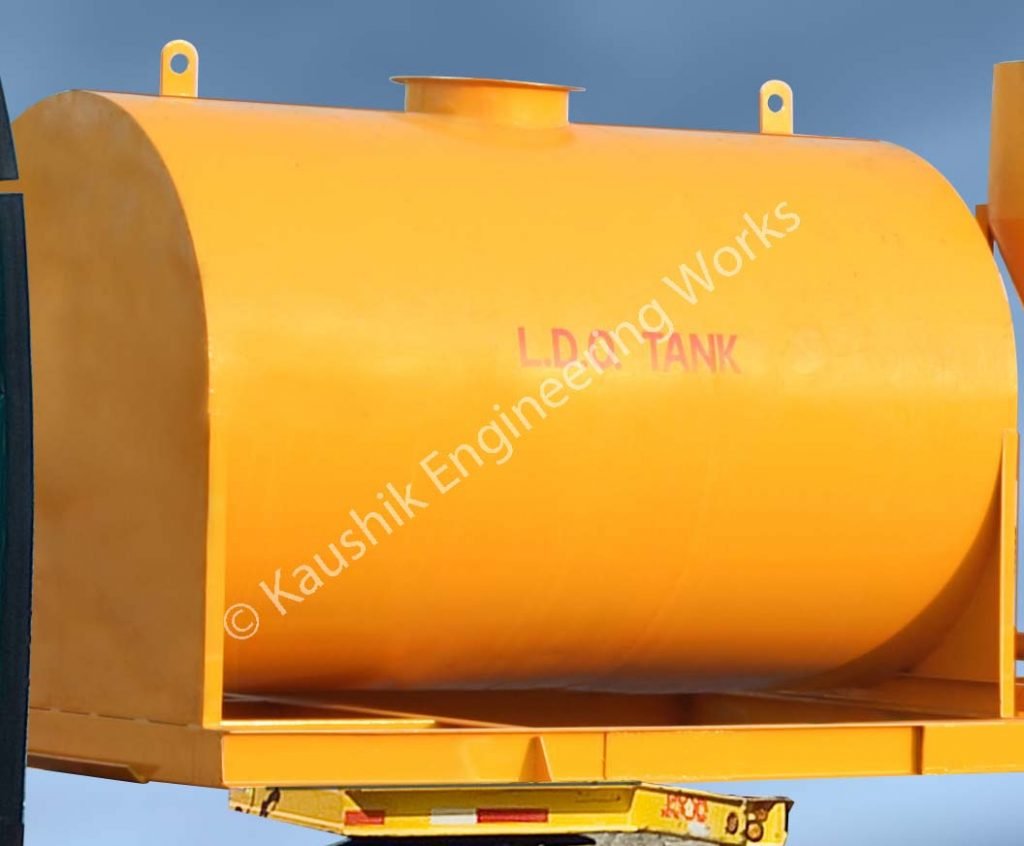

LDO Tank
LDO Tank

As per the customer’s requirement L.D.O. / Fuel Tank can be customised from 2,000 Ltrs to 10,000 Ltrs capacity.

Filler Storage Unit
Filler Storage Unit

Kaushik Engineering Works offers a wide range (1.5-50 tons) of filler storage and feeding solutions for the customers to choose form, depending on the site requirements. A variable speed computerized synchronized metering system ensures the right proportioning in the mix.

Control Panel
Control Panel
Control Cabin
Control Cabin

Fully computerized control cabin with on board electrical power control console, distribution switch board, fully automatic process and sequence controls are a standard on our KEW series plants.

A user friendly software gives you total reliability and ensures top notch performance.

  • Fail proof interlocks and auto process controls
  • Online fault detection
  • Online printing facility
  • Provisions to print, store and edit production details, mix proportions, etc.
  • Display of all process control parameters
  • Automatic, semi-automatic & manual operation

The control is equipped with function keys and numeric keys and does not require special skills for operation.

Optional attachments like Hot Mix Storage Silos for mixed material, Wet Dust Collector and/or Bag House Filter Unit for effective pollution control, Bitumen heating and storage tanks provided to suit specific needs.

Global Installation
Mobile Drum Mix Plant Installed in Kenya

MDM-45

Installed in Kenya

Mobile Drum Mix Plant

MDM-45

Installed in Kenya

Mobile Drum Mix Plant Installed in Kenya

MDM-45

Installed in Kenya

Mobile Drum Mix Plant

MDM-25

Installed in Bangladesh

Mobile Drum Mix Plant

MDM-25

Installed in Bangladesh
